Cast-Iron Gas Boilers of OMEGA CI Series

Extended power range from 16 to 50 kW. Working together with the Lemax monitoring and control device for remote monitoring and control of indicators of gas boilers and heating systems via a mobile application. Advanced protection system against heat exchanger overheating, draft interruption, boiler blowing.

Learn More

Description

Description

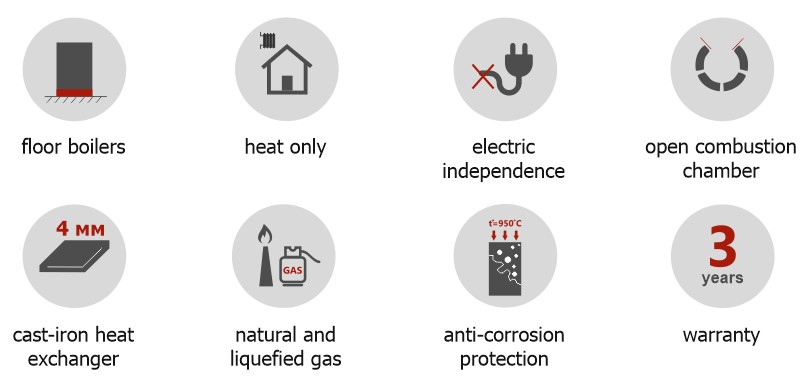

Extended power range from 16 to 50 kW.

The boiler does not require connection to the electric mains.

Cast iron needle type heat exchanger with 4 mm thick turbulators.

Operating pressure up to 4 atm.

Work in heating systems with forced circulation of the coolant.

Advanced protection system against heat exchanger overheating, draft interruption, boiler blowing.

Easy boiler cleaning through the use of a removable top panel.

Possibility of connecting a room thermostat to regulate the indoor temperature with high precision.

Working together with the Lemax monitoring and control device for remote monitoring and control of indicators of gas boilers and heating systems via a mobile application.

Soft start system for acoustic comfort when the boiler starts up.

Convenience of cleaning the boiler without disconnecting from the chimney due to the use of removable lining covers and a weight stabilizer.

Parameter	OMEGA CI 16	OMEGA CI 25	OMEGA CI 35	OMEGA CI 40	OMEGA CI 50
Type of gas burner equipment	Type of gas burner equipment GGY-16ES	Type of gas burner equipment GGY-25ES	Type of gas burner equipment GGY-35ES	Type of gas burner equipment GGY-40ES	Type of gas burner equipment GGY-50ES
Nominal input thermal power, kW	Nominal input thermal power, kW 16,5	Nominal input thermal power, kW 25	Nominal input thermal power, kW 32,5	Nominal input thermal power, kW 41	Nominal input thermal power, kW 53
Deviation of the nominal heat input,%	Deviation of the nominal heat input,% 5	Deviation of the nominal heat input,% 5	Deviation of the nominal heat input,% 5	Deviation of the nominal heat input,% 5	Deviation of the nominal heat input,% 5
Nominal heat output, kW	Nominal heat output, kW 15	Nominal heat output, kW 22	Nominal heat output, kW 29	Nominal heat output, kW 37	Nominal heat output, kW 48
Efficiency %, no more	Efficiency %, no more 90	Efficiency %, no more 90	Efficiency %, no more 90	Efficiency %, no more 90	Efficiency %, no more 90
Volume of the heat carrier in the heat exchanger, l	Volume of the heat carrier in the heat exchanger, l 7,2	Volume of the heat carrier in the heat exchanger, l 9,6	Volume of the heat carrier in the heat exchanger, l 12	Volume of the heat carrier in the heat exchanger, l 14,4	Volume of the heat carrier in the heat exchanger, l 16,8
Nominal pressure (natural gas), Pa	Nominal pressure (natural gas), Pa 2000	Nominal pressure (natural gas), Pa 2000	Nominal pressure (natural gas), Pa 2000	Nominal pressure (natural gas), Pa 2000	Nominal pressure (natural gas), Pa 2000
Nominal pressure (liquefied gas), Pa	Nominal pressure (liquefied gas), Pa 3000	Nominal pressure (liquefied gas), Pa 3000	Nominal pressure (liquefied gas), Pa 3000	Nominal pressure (liquefied gas), Pa 3000	Nominal pressure (liquefied gas), Pa 3000
Maximum consumption of natural gas, m³/h	Maximum consumption of natural gas, m³/h 1,75	Maximum consumption of natural gas, m³/h 2,62	Maximum consumption of natural gas, m³/h 3,41	Maximum consumption of natural gas, m³/h 4,3	Maximum consumption of natural gas, m³/h 5,6
Vacuum range for stable operation, Pa	Vacuum range for stable operation, Pa 3-25	Vacuum range for stable operation, Pa 3-40	Vacuum range for stable operation, Pa 3-40	Vacuum range for stable operation, Pa 3-40	Vacuum range for stable operation, Pa 3-40
Working water pressure, MPa	Working water pressure, MPa 0,4	Working water pressure, MPa 0,4	Working water pressure, MPa 0,4	Working water pressure, MPa 0,4	Working water pressure, MPa 0,4
Maximum outlet water temperature, no more	Maximum outlet water temperature, no more 95	Maximum outlet water temperature, no more 95	Maximum outlet water temperature, no more 95	Maximum outlet water temperature, no more 95	Maximum outlet water temperature, no more 95
Flue gas temperature, ℃	Flue gas temperature, ℃ 80	Flue gas temperature, ℃ 80	Flue gas temperature, ℃ 80	Flue gas temperature, ℃ 80	Flue gas temperature, ℃ 80
Chimney diameter, mm	Chimney diameter, mm 128	Chimney diameter, mm 128	Chimney diameter, mm 145	Chimney diameter, mm 145	Chimney diameter, mm 145
Net weight, kg, not more	Net weight, kg, not more 100	Net weight, kg, not more 110	Net weight, kg, not more 130	Net weight, kg, not more 145	Net weight, kg, not more 190
Overall dimensions height/width/depth	Overall dimensions height/width/depth 800/418/545	Overall dimensions height/width/depth 800/418/624	Overall dimensions height/width/depth 810/418/708	Overall dimensions height/width/depth 960/418/786	Overall dimensions height/width/depth 860/418/864
